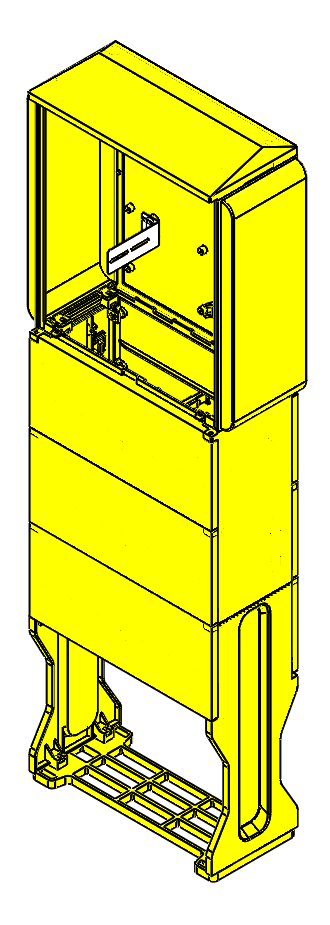

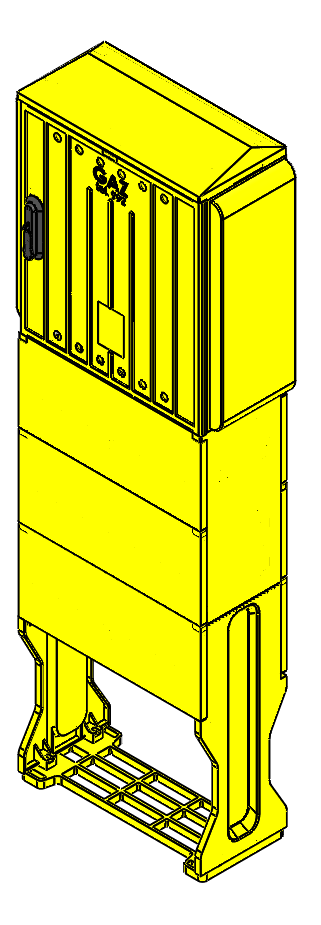

Cabinet for PSG (Polish Gas company), type 2B, with pedestal + gas meter bar, low pressure

Gas points designed for installing valves and gas meters with or without a gas pressure reducer.

They are used in single-family homes, public utilities, etc.

We have designed a range of solutions that allow you to conveniently install a reduction and measurement node or a metering unit according to your individual needs:

• in a housing on a building wall;

• in a freestanding enclosure (on a foundation dug into the ground)

The enclosures and foundations are made of thermosetting plastic (polyester and fiberglass composite) in RAL 1021. Additionally, the external surfaces are coated with a protective coating to increase the material's resistance to weathering (including UV).

• Operating temperature: -50 ÷ 85 ºC;

• Flammability category: V0;

• Halogen-free material.

In addition, the cabinets meet the following requirements:

• Resistance to impact loads;

• Impact resistance;

• Mechanical resistance to impacts from sharp-edged objects;

• Torsional resistance;

• Mechanical resistance of doors;

• Mechanical resistance of the base intended for embedding in the ground.
