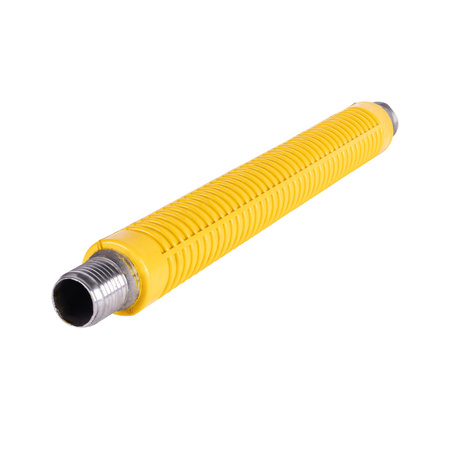

Flexible below ground entry - DN63
Flexible below ground entry - DN63
Flexible below ground entry - DN63
Flexible below ground entry - DN63
Flexible below ground entry - DN63
Flexible below ground entry - DN63

Flexible below ground entry - DN63

Type of steel ending
PE pipe diameter
Application
Total length
(Discount %)
0,00 €
net / 1pc.
/ 1pc.
Wall and foundation transitions make it possible to safely introduce gas installations into buildings. Wall transitions are steel elements (aboveground entry). To ensure the installation's durability, the pipes are zinc coated and additionally protected with plastic conduits. Foundation transitions are PE-steel elements (underground entry). The transition is made from a pipe in 3LPE insulation, a corrugated conduit, or a compensating element made from stainless steel, depending on the place of connection, and from an additional plastic sleeve, or tape.
Brand
Symbol
05-30-0000-57
Total length
1900 mm
PE length
300 mm
Steel length
630 mm
CN code
7304 19 10
PE pipe thickness
5.8
Steel pipe thickness
4
PE pipe colour
Black
Protecion conduit
Double-walled corrugated casing pipe 90/75
Thread type and diameter
Female thread 2″
Type of PE pipe
PE100
Type of steel ending
Female thread 2"
SDR PE pipe
11
PE pipe diameter
63
Steel pipe diameter
60.3
DN size
DN50
Gross weight
8,3 kg
Application
Flexible
