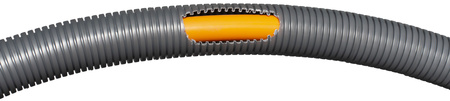

Flexible gas entry pipe 32/25 with ball valve f-f 1''
Flexible gas entry pipe 32/25 with ball valve f-f 1''
Flexible gas entry pipe 32/25 with ball valve f-f 1''
Flexible gas entry pipe 32/25 with ball valve f-f 1''

Flexible gas entry pipe 32/25 with ball valve f-f 1''

Type of steel ending
PE pipe diameter
Application
Total length
(Discount %)
0,00 €
net / 1pc.
/ 1pc.
Wall and foundation transitions make it possible to safely introduce gas installations into buildings. Wall transitions are steel elements (aboveground entry). To ensure the installation's durability, the pipes are zinc coated and additionally protected with plastic conduits. Foundation transitions are PE-steel elements (underground entry). The transition is made from a pipe in 3LPE insulation, a corrugated conduit, or a compensating element made from stainless steel, depending on the place of connection, and from an additional plastic sleeve, or tape.
Brand
Symbol
05-30-0000-65
Total length
8000 mm
PE length
770 mm
Steel length
250 mm
CN code
7304 19 10
Steel grade
L2750 3LPE
PE pipe thickness
3
Steel pipe thickness
3.6
PE pipe colour
Orange
Protecion conduit
Black PE casing pipe
Type of PE pipe
PE100
Type of steel ending
Valve w-w 1"
SDR PE pipe
11
PE pipe diameter
32
Steel pipe diameter
33.7
Application
Flexible
DN size
DN25
Gross weight
7,5 kg
