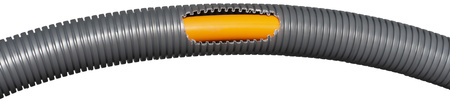

Flexible gas entry pipe PE 32/25 x ball valve 1" female thread, L6000
Flexible gas entry pipe PE 32/25 x ball valve 1" female thread, L6000
Wall and foundation transitions make it possible to safely introduce gas installations into buildings. Wall transitions are steel elements (aboveground entry). To ensure the installation's durability, the pipes are zinc coated and additionally protected with plastic conduits. Foundation transitions are PE-steel elements (underground entry). The transition is made from a pipe in 3LPE insulation, a corrugated conduit, or a compensating element made from stainless steel, depending on the place of connection, and from an additional plastic sleeve, or tape.
Brand
Symbol
05-30-0000-42
CN code
7304.19.10
Max pressure
5 bar
Steel grade
L360N
PE pipe thickness
3,0
Steel pipe thickness
3,6
PE pipe colour
Orange
Material
Steel, Stainless steel, plastic
Protecion conduit
Corrufated pipe 50/43
Type of PE pipe
PE100 RC
DN size
DN25
Type of steel ending
DN25 with valve female/female 1″
SDR PE pipe
11
Steel pipe diameter
33,7
PE pipe diameter
32
Application
Flexible
Gross weight
4,73 kg
Total length
6000 mm
Group
Underground gas entry pipes
