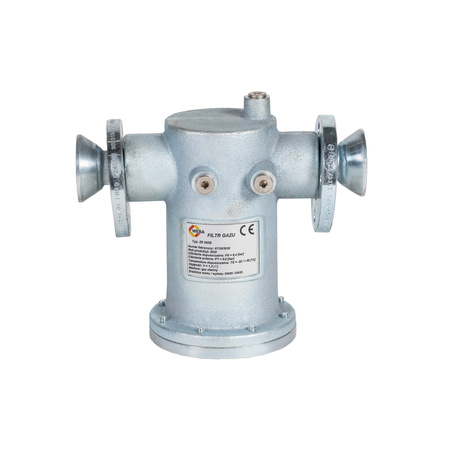

Gas filter DN25
Straight and angled gas filters
serve to filter the gas and to protect gas meters, reducers and gas receivers from damage, by stopping debris on their surface or between filtering elements. The flanges in flanged filters allow them to be installed in any position.
Optionally, differential pressure gauges can be fitted in filters. Please contact us at export@weba.com.pl to receive an offer
Filters manufactured by Weba guarantee top quality and unparalleled safety!
Brand
Symbol
20-09-0025-11
CN code
8421.39.85
Discount group
C
Max pressure
6,4 bar
Type of filter cartridge
Non-woven fleece reinforced with steel mesh
Filtering class
99,9% particles bigger than 15 (µm) and 95% particles bigger than 5 (µm)
Steel grade
GJS400-15 ductile cast iron
Zinc coating
8 μm
Material
Cast iron
Flange dimensions DN
DN25
Product dimensions
240x280mm
Protection against corrosion
Galvanized
Min temperature
-20 °C
Max temperature
50 °C
Gross weight
11,53 kg
Total height
240 mm
Width Total
280 mm
Thread type and diameter
Female thread 1"
Group
Filter
Application
methane
